Config Manager Agent

Config Manager Agent is an EII service, that is responsible for the following:

  • Puts the EII services configs to the EII config manager data store

  • Additionally in PROD mode, generates the following:

    • Required config manager data store keys/certificates to interact with EII config manager data store like etcd and puts in the volume mounts to be shared with other EII services

    • Required messagebus keys for EII services communication

  • Creates required provisioning folders with the right permissions needed for other EII services via volume mounts

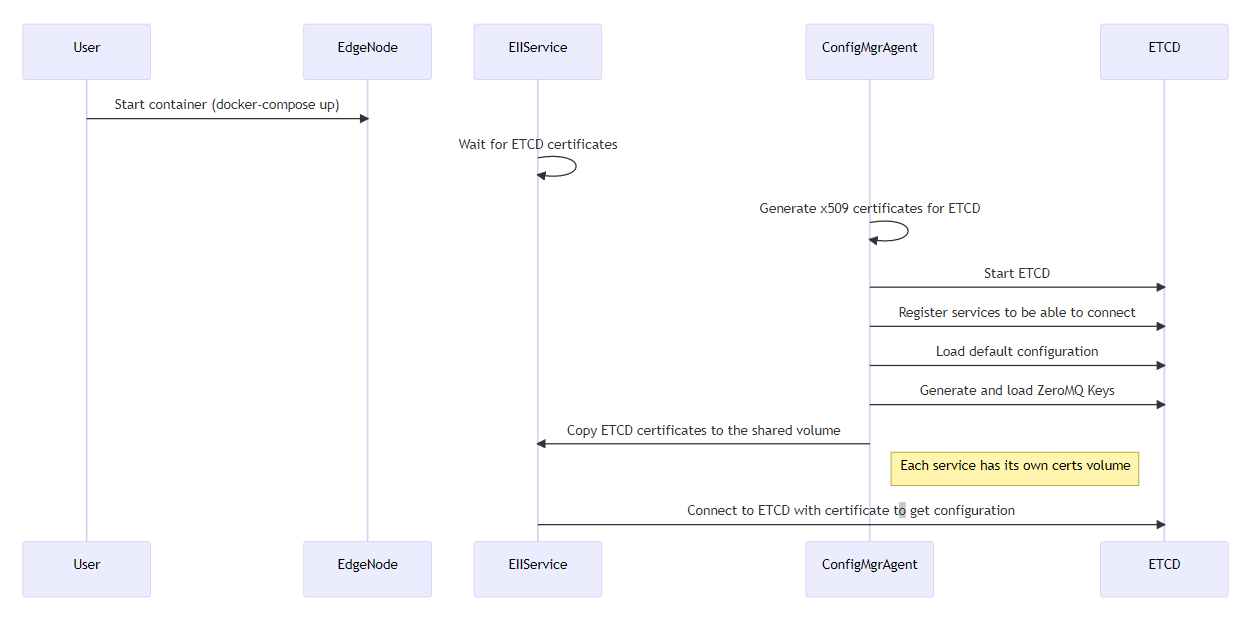

The following diagram shows a high level flow of ConfigMgrAgent service .

Configmgr_agent

Note

Any EII service waits/restarts if the config manager data store client key and certificates are yet to be made available for the container. EII Certificates will be re-generated everytime the ConfigMgrAgent service brought up/restarted

Optional: For capturing the data back from Etcd to a JSON file, run the etcd_capture.sh script. This can be achieved using the following command:

docker exec -it ia_configmgr_agent ./scripts/etcd_capture.sh
